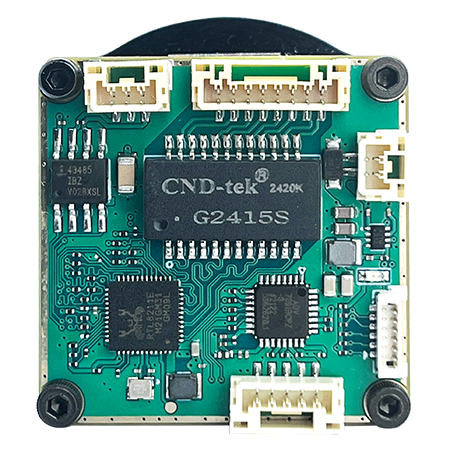

A2T-ETH-GigE was a infrared thermal module that developed for industrial and security monitoring. It uses ASIC solution, equipped with a 384x288 or 640x512 resolution LWIR uncooled VOx infrared detector.
● 384x288/640x512 Uncooled VOx Infrared Detector
● Supports Auto/Manual Calibration, Reticle, Digital Zoom, Integrated Compass and Motion Sensor
● Ethernet +USB (UVC driver-free) output
High sensitivity, NETD<40mK
Excellent image quality, less image noise
Integrated GPIO Button for adjustment
High integration, small size, low consumption
6-24V DC, Type-C port
Ethernet +USB (UVC driver-free) output
| Model | A2T-ETH | ||
Infrared Detector | Detector Type | Uncooled VOx | |
| Resolution | 384 x 288 | 640 x 512 | |
| Pixel Size | 12μm | ||
| Spectral Band | 8~14μm | ||
| Frame Rate | 25Hz/30Hz/50Hz | 25Hz/30Hz | |
| NETD | ≤40mK @25℃,F#1.0 | ≤35mK @25℃,F#1.0 | |
| Main Function | Calibration | Auto/Manual | |
| Image Mode | Black hot/White hot/Red hot/Blue-green Flames/Iron Rainbow/Spectrum | ||
| Compass | Supported | ||
| Motion Sensor | Supported | ||
| Reticle | On/Off/Adjust | ||
| Digital Continue Zoom | 1.0~4.0x | ||
| Button | Up, Down, Left, Right, Menu button | ||
| Interfaces | Power Port | 6-24V DC | |
| Key Port | Up, Down, Left, Right, Menu button | ||
| Video Output Port | USB，CVBS | ||
| Ethernet Port | 1 Gbps | ||
| Resolution | CVBS | 720x576/PAL | |
| USB（UVC） | 384 x 288 | 640 x 512 | |
A2T-ETH-Onvif | Protocol | Onvif/RTSP | |
| Platform Access | Onvif/RTSP/HTTP/DHCP | ||
| UART | RS-485(only PELCO-D) | ||
| Preview | Maximum 4 | ||
A2T-ETH-GigE | Protocol | GigE Vision | |
| Platform Access | GigE/RTSP/DHCP | ||
| Electrical Parameters | Power Supply | 6-24V DC | |
| Power Consumption | ≤2W | ≤2.5W | |
| Other | Lens | M25x0.5，Multiple Focal Lengths Available | |
| Dimension(No lens) | 32x32x43.70mm | ||
| Weight(No lens) | 59g | ||
| Operating Temperature | -20℃~60℃ | ||
| Storage Temperature | / | ||
| Humidity | / | ||
