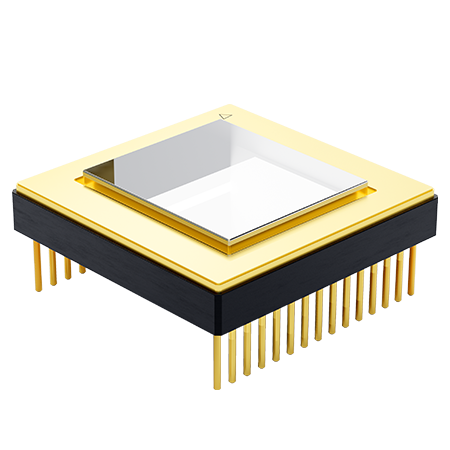

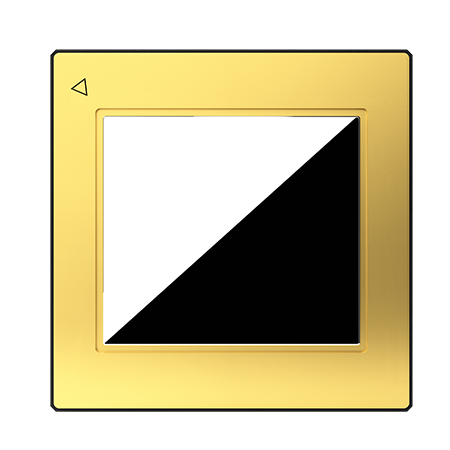

TM12M is a uncooled VOx infrared detector that is minisize ceramic packaging,only 20x20mm. Its pixel size is 12μm and resolution is 384x288/640x512, it can be applied to FPV,drone etc.
● Minisize:20x20mm
● Pixel Size:12μm
● Resolution:640x512/384x288
High sensitivity, NETD<40mK
Resolution 384×288/640x512
Power consumption:130mW
Built-in 14 bit ADC
Light weight, less than 5g
Minisize, 20×20mm
| Model | TM12M | |
| Sensitive Material | Vanadium Oxide | |
| Resolution | 384 x 288 | 640 x 512 |
| Pixel size | 12μm | |
| Thermal Response Time | 10ms | |
| Spectral Band | 8~14μm | |
| NETD | <35mK (F#/1.0，50Hz，300K) | |
| Frame Rate | 25Hz/30Hz/50Hz/60Hz | |
| Read-Out | progressive | |
| Digital Output | 14 bit ADC | |
| Power Consumption | <130mW@50Hz | |
| Operating Temperature | -40℃~85 | |
| Dimension(mm) | 20×20×4.58mm | |
| Weight | ≤5g | |
