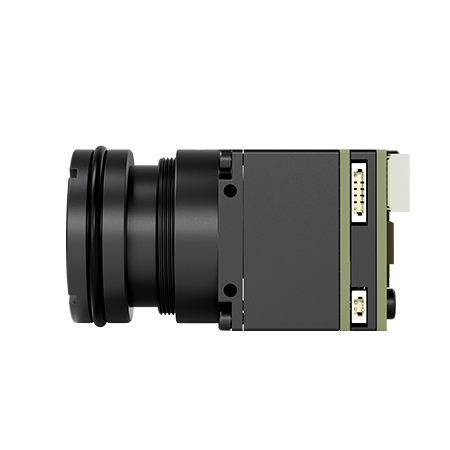

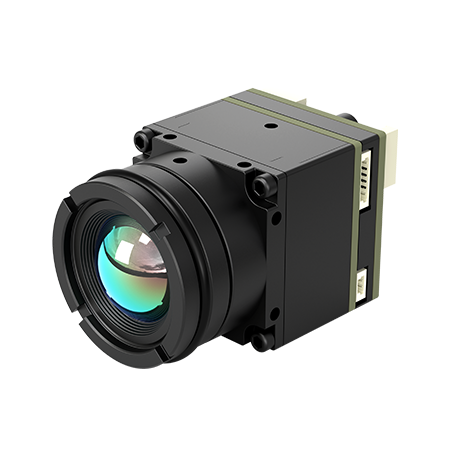

The LC201 infrared thermal module is designed for volume and power consumpsion sensitive applications, its size only 22x22mm, provides USB and CVBS 2 kinds of port and suit for apply to Miniaturized equipments.
● 384x288/640x512 Uncooled VOx Infrared Detector
● Supports 2D/3D-denoise,BG correction,Pseudo color,DDE
● CVBS+USB(UVC) output
High sensitivity, NETD<40mK
Excellent image quality, stable Image
Multiple image mode
CVBS+USB(UVC) output
High integration, small size, low consumption
Apply to drone,FPV
| Model | LC201 | ||
Infrared detector | Detector type | Uncooled VOx Infrared Detector | |
| Resolution | 384 x 288 | 640 x 512 | |
| Pixel size | 12μm | ||
| Spectral Band | 8~14um | ||
| Frame rate | 25Hz/30Hz/50Hz | 25Hz/30Hz | |
| NETD | ≤40mK @25℃,F#1.0 | ≤35mK @25℃,F#1.0 | |
| Image | Image processing | OCC Correction, BG Correction, NUC, AGC, DDE | |
| Image adjust | 2D/3D-Denoise, brightness, Contrast | ||
| Image mode | Black hot/White hot/Red hot/Blue-green Flames/Iron Rainbow/Spectrum | ||
| Digital zoom | 1.0~4.0× | ||
| CVBS Resolution | 720x576 PAL | ||
| USB Resolution | 384x288（YUV/MJPG/RAW14 bits） | 640x512（YUV/MJPG/RAW14 bits） | |
| Electrical parameters | Supply Voltage | 5-24V DC | |
| Supply Current | <200mA | ||
| Power Consumption | <1W | ||
| CVBS signal amplitude | / | ||
| Other parameters | Lens | M20 x 0.5，Multiple focal lengths available | |
| Dimension(with lens) | 41x22x22mm | ||
| Weight(with lens) | 31.3g | ||
| Operating temperature | / | ||
| Storage temperature | / | ||
