A1T series were infrared thermal imaging camera that developed for industrial use by Link-Card Tech, include HDMI，SDI andAHD/CVBS/TVI/CVI three modules. They use ASIC solution, equipped with a 384x288 or 640x512 resolution LWIR uncooledVOx infrared detector.
●384x288/640x512,uncooled VOx LWIR detector
● Supports Auto/Manual Calibration, Reticle, Digital Zoom, Integrated Compass and Motion Sensor
● HDMI/AHD/SDI +USB (UVC driver-free) output
High sensitivity, NETD<40mK
Excellent image quality, no image noise
Integrated GPIO Button for adjustment
High integration, small size, low consumption
5V DC, Type-C port
HDMI/AHD/SDI +USB (UVC driver-free) output
| Model | A1T | ||
Infrared detector | Detector type | Uncooled VOx Infrared Detector | |
| Resolution | 384 x 288 | 640 x 512 | |
| Pixel size | 12μm | ||
| Response band | 8~14um | ||
| Frame rate | 25Hz/30Hz/50Hz | 25Hz/30Hz | |
| NETD | ≤40mK @25℃,F#1.0 | ≤35mK @25℃,F#1.0 | |
| Image | Calibration | Auto/Manual | |
| Image mode | Black hot/White hot/Red hot/Blue-green Flames/Iron Rainbow/Spectrum | ||
| E-Compass | Supported | ||
| Motion Sensor | Supported | ||
| Reticle | On/Off/Adjust | ||
| Digital Zoom | 1.0~4.0× continuous zoom | ||
| Button | Up, Down, Left, Right, Confirm button | ||

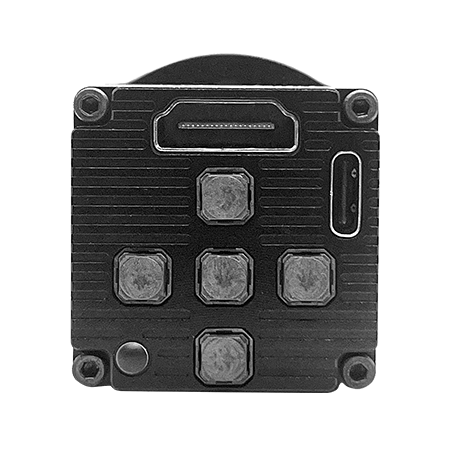

| Interface | A1T-HDMI | HDMI，Type-C | |

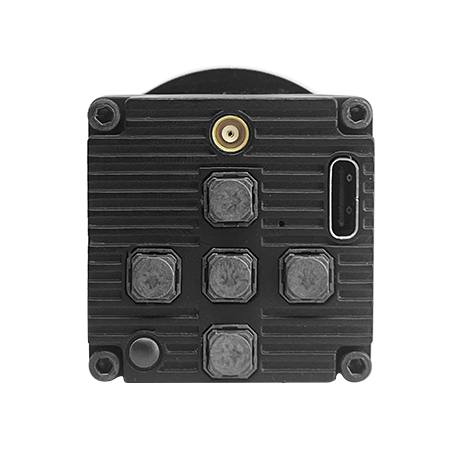

| A1T-AHD | MCX，Type-C | ||
| A1T-SDI | MCX，Type-C | ||
| Resolution | A1T-HDMI | 1024x768@50Hz | |
| A1T-AHD | 720P/PAL | ||
| A1T-SDI | 720P/PAL | ||
| USB（UVC） | 384x288 | 640x512 | |
| Electrical parameters | Power Port | USB Type-C | |
| Power Supply | 5V DC | ||
| Power Consumption | <1.2W | ||
| Other parameters | Lens | Standard 25mm lens, M25 x 0.5, multiple focal lengths available | |
| Dimension(No lens) | 32x32x43.70mm | ||
| Weight(No lens) | 59g | ||
| Operating temperature | -20℃~60℃ | ||
| Storage temperature | / | ||
| Humidity | / | ||
