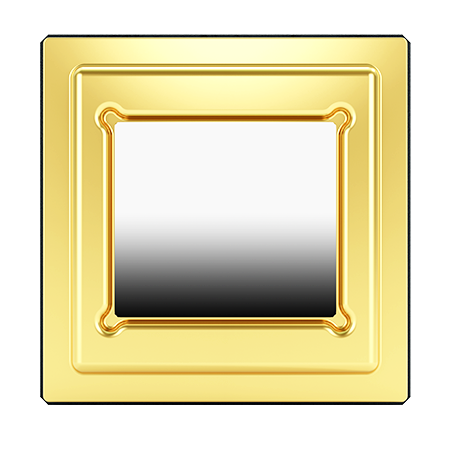

TM12 is a ceramic packaging uncooled VOx infrared detector.Its pixel size is 12μm and resolution is 384x288 or 640x512, it can be applied to outdoor observation,night vision etc.
● Spectral Band:8μm~14μm
● Pixel Size:12μm
● Resolution:640x512/384x288
High sensitivity, NETD<40mK
Resolution 384×288/640x512
power consumption:130mW
Built-in 14 bit ADC
Light weight, less than 5g
Small size, 22mm×22mm
| Model | TM12 | |
| Sensitive Material | Vanadium Oxide | |
| Resolution | 384 x 288 | 640 x 512 |
| Pixel size | 12μm | |
| Thermal Response Time | 10ms | |
| Spectral Band | 8~14μm | |
| NETD | <35mK (F#/1.0，50Hz，300K) | |
| Frame Rate | 25Hz/30Hz/50Hz/60Hz | |
| Read-Out | progressive | |
| Digital Output | 14 bit ADC | |
| Power Consumption | <130mW@50Hz | |
| Operating Temperature | -40℃~85 | |
| Dimension(mm) | 22×22×4.58mm | |
| Weight | ≤5g | |
