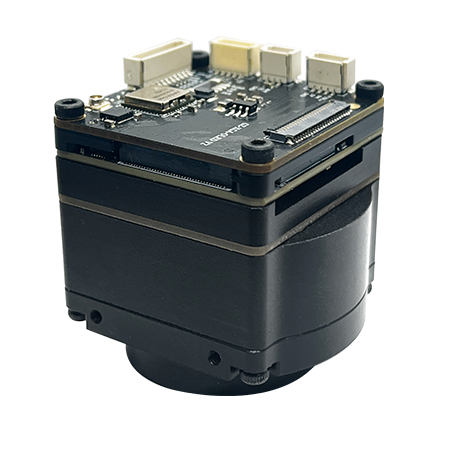

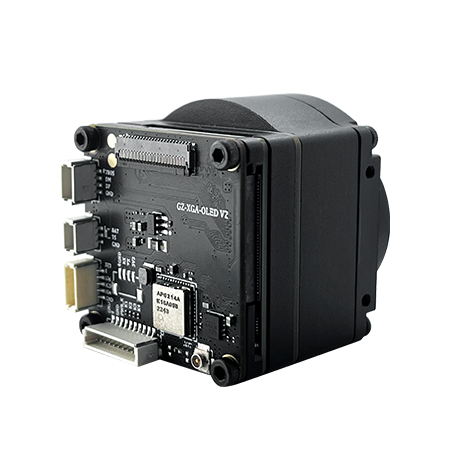

LC221 is a low-cost thermal module that developed by Link-Card Tech, equipped with a 384x288 or 640x512 resolution uncooledLWIR VOx infrared detector. It uses ARM+DSP Soc solution and no FPGA and has built-in an 2Gb DDR, which can meet highresolution and high frame rate image processing requirements.
● 384x288/640x512 Uncooled VOx Infrared Detector
● Supports 2D/3D-Denoise, Digital Zoom, PIP, Color Adjustment
● Built-in Professional RGB888 and Translucent GUI
High sensitivity, NETD<40mK
High integration, small size, low consumption
Supports Wi-Fi
Built-in 32GB Memory, Supports Record and Capture
Integrated 4x GPIO Buttons and Rotary Encoder
Multiple Focal Lengths Available
| Component Type | LC221 | ||
Infrared Detector | Detector Type | Uncooled VOx Infrared Detector | |
| Resolution | 384 x 288 | 640 x 512 | |
| Pixel Size | 12μm | ||
| Spectral Band | 8~14um | ||
| Frame Rate | 25Hz/30Hz/50Hz | 25Hz/30Hz | |
| NETD | ≤40mK @25℃,F#1.0 | ≤35mK @25℃,F#1.0 | |
| Image Adjustment | Image Processing | OCC Correction, Shutter Correction, NUC, AGC, DDE | |
| Image Mode | White hot/Black hot/Red hot/Blue-green Flames/Iron Rainbow/Spectrum | ||
| Main Function | WIFI | Supported | |
| Motion Sensor | Supported | ||
| E-Compass | Supported | ||
| Recording and Capture | Supported | ||
| PIP | Supported | ||
| Reticle | On/Off/Adjust | ||
| Digital Zoom | 1.0~4.0× continuous zoom | ||
| Voltage Current | Battery Voltage | 4.2V/4.35V | |
| Charging Current | 500mA@5V | ||
| GPIO Voltage | 3.3V | ||
| TTL Level | 3.3V | ||
| Power Supply | USB Charge/Battery | ||
| Battery | 1S-Li | ||
| Connector | Wi-Fi Antenna Connector | I-PEX First Generation | |
| Panel Connector | Guozhao 0.39inch GZ039PBC03 | ||
| Rotary Encoder | Supported | ||
| Battery Connector | Supported | ||
| USB Port | Supported | ||
| GPIO Buttons | Supported | ||
| Lens | M25 x 0.5, Multiple Focal Lengths Available | ||
| Physical Property | Weight(No lens) | 52g | 55g |
| Dimension(No lens) | 41.15 x 35.9 x 32mm | 39.85 x 35.9 x 32mm | |
| Environment Adaptability | Operating Temperature | / | |
| Storage Temperature | / | ||
| Humidity | / | ||
