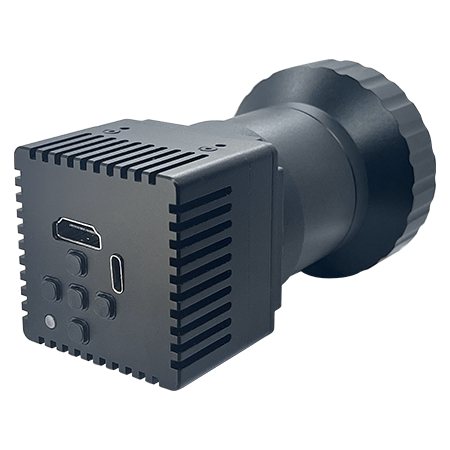

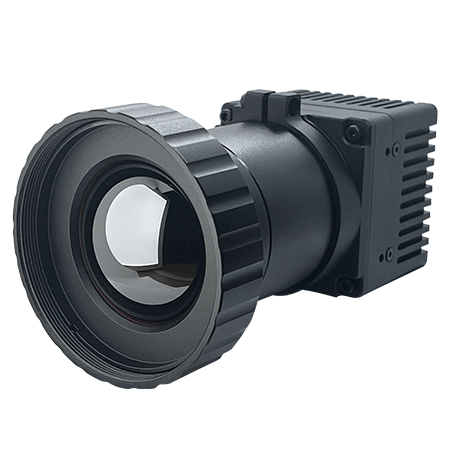

A1T-1280 is a HD infrared thermal imaging camera that developed by Link-Card Tech and supports HDMI and USB output. It uses ASIC solution, equipped with a 1280x1024 resolution LWIR uncooled VOx infrared detector.
● 1280x1024 Uncooled VOx Infrared Detector
● Supports Auto/Manual Calibration, Reticle, Digital Zoom, Integrated Compass and Motion Sensor
● HDMI+USB (UVC driver-free) output
High sensitivity, NETD<40mK
Excellent image quality, no image noise
Integrated GPIO Button for adjustment
High integration, small size, low consumption
5V DC, Type-C port
HDMI+USB (UVC driver-free) output
| Model | A1T-1280 | ||
Infrared Detector | Detector Type | Uncooled VOx | |
| Resolution | 1280x1024 | ||
| Pixel Size | 12μm | ||
| Spectral Band | 8~14μm | ||
| Frame Rate | 25Hz/30Hz/50Hz | ||
| NETD | ≤40mK @25℃,F#1.0 | ||
| Main Function | Calibration | Auto/Manual | |
| Image Mode | Black hot/White hot/Red hot/Blue-green Flames/Iron Rainbow/Spectrum | ||
| Compass | Supported | ||
| Motion Sensor | Supported | ||
| Reticle | On/Off/Adjust | ||
| Digital Continue Zoom | 1.0~4.0x | ||
| Button | Up, Down, Left, Right, Menu button | ||
| Output | Output Port | HDMI，Type-C | |
| Output Resolution | 1280x1024@50Hz | ||
| USB（UVC）Resolution | 1280x1024 | ||
| Electrical Parameters | Power Port | USB Type-C | |
| Power Supply | 5V DC | ||
| Power Consumption | ≤2W | ||
| Other | Lens | 50mm lens，M45 x 1.0 | |
| Dimension(No lens) | 45 x 45 x 43.70mm | ||
| Weight(No lens) | / | ||
| Operating Temperature | -20℃~60℃ | ||
| Storage Temperature | / | ||
| Humidity | / | ||
