1.Product introduction
This product solution can be used for low-light night vision outdoor observation products, which can be widely used in outdoor animal observation, tourism exploration, search and rescue and other occasions. The product is positioned as a high-quality entry-level low-light night vision product with excellent performance and stable performance. By using advanced low-light imaging technology, users can obtain clear images and accurate data in a variety of environmental conditions, improving the efficiency of observation and search. This product not only has practicality and reliability, but also has a good user experience and ease of use, which can meet the needs of users for high-quality low-light night vision products. Whether it is a professional or an ordinary consumer, they can get a satisfactory experience from this product.
2.The main features
This product solution adopts 1920x1080 resolution, 4μm/5.96μm movement, and is equipped with a cost-effective telephoto lens, which can significantly reduce the cost of the whole machine. This configuration is not only economical, but also provides excellent imaging results and a better price/performance ratio for the user. By adopting such a design solution, the product will have a competitive advantage in the market and attract more consumers.
The main features are:
• 1920x1080 Low Light Detector, SC2210/IMX482
• Contrast, brightness adjustable
• Integrated electronic compass, motion sensor
• Supports battery power and USB charging
• Integrated 4x universal keys and rotary encoder
• Reserved laser ranging interface
• Support BOE 0.49-inch 1920x1080@50 frame high-definition OLED screen
• Support Wi-Fi wireless video transmission, support U disk function
• Built-in 32GB storage, support for taking photos and videos
• Mobile device client available (Android and IOS)

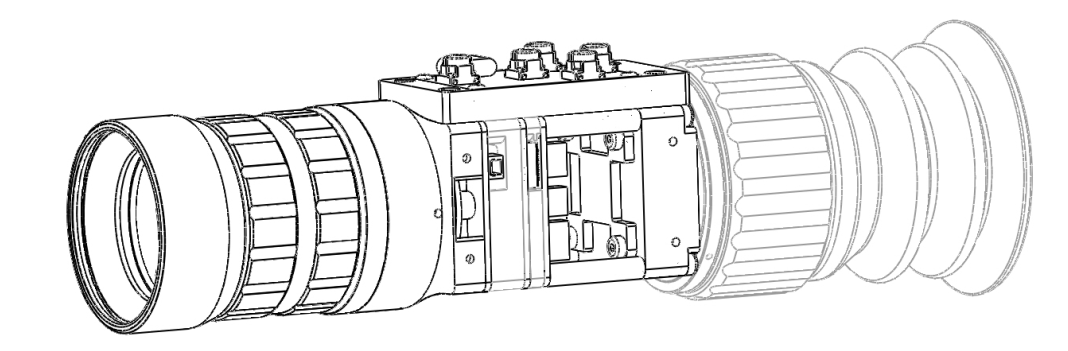

3. Product assembly drawings and component introduction
Part Description:
| Lens | M34x0.75 |
| LCC21 calibre | It includes an image processing board, a detector processing board, and an interface expansion board |
| Button board | Includes buttons and a TEP-Gram interface |
| Display screen | OLED screen |
| Battery | 1S Lithium battery |
| Eyepiece | Includes eyepiece vision (adjustable to suit users with different visions), eye patch |

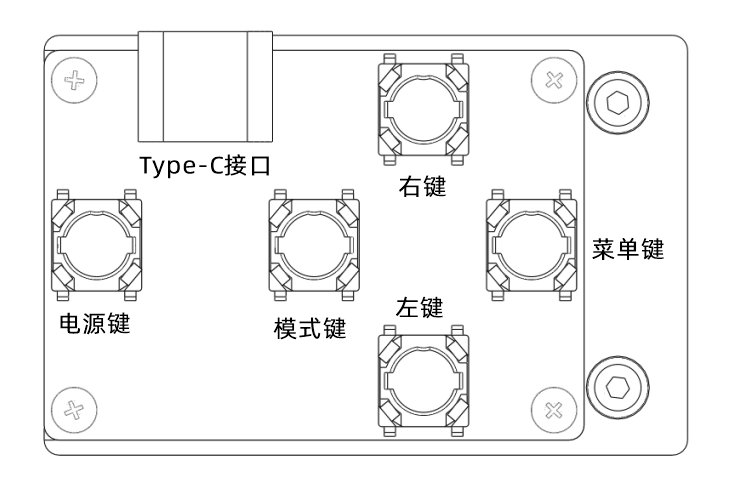

Function description of the key board:
| Power button | Power on/off, screen off/on |
| Mode key | Take photos/videos |
| Left | Zoom out/up arrow keys |
| Right-click | Increase the magnification/down arrow key |
| Menu key | Image mode/Go to the main menu |
| Type-C interface | External power supply and battery charging/connection to the computer |
4.The product imaging mode

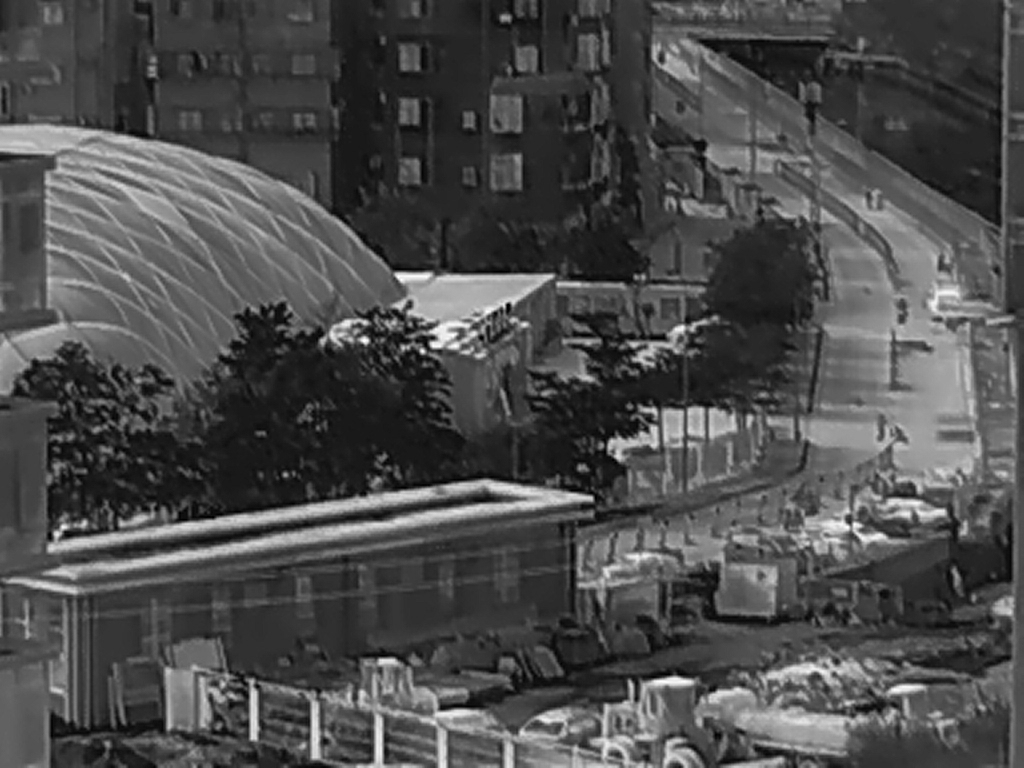

Day mode Evening mode Night mode
5.The product operation interface
6.The product bill of materials
• Lens
• Movement (1920x1080)
• Core control board
• Display screen
• Enclosure
• Battery
Welcome to customize the development!
