1. Product introduction
This product solution can be used for infrared thermal imaging outdoor observation products, which can be widely used in outdoor animal observation, tourism exploration, search and rescue and other occasions. The product is positioned as a high-quality entry-level infrared thermal imaging product with excellent performance and stable performance. By using advanced infrared thermography technology, users can obtain clear images and accurate data in a variety of environmental conditions, improving the efficiency of observation and search. This product not only has practicality and reliability, but also has a good user experience and ease of use, which can meet the needs of users for high-quality infrared thermal imaging products. Whether it is a professional or an ordinary consumer, they can get a satisfactory experience from this product.
2.The main features
This product solution uses 384x288/640x512 resolution, 12μm movement, and small size infrared lens, which can significantly reduce the cost of the whole machine. This configuration is not only economical, but also provides excellent imaging results and a better price/performance ratio for the user. By adopting such a design solution, the product will have a competitive advantage in the market and attract more consumers.
The main features are:
• 384x288/640x512 infrared heat detector movement
• Support 1S lithium battery, support USB charging
• Built-in 0.39-inch OLED screen, resolution 1024*768@50Hz
• Integrated 4x universal buttons and rotary encoder
• 5 physical buttons, including the power button
• Built-in 32GB storage with built-in Wi-Fi
• Simple and easy to operate
• The translucent menu can effectively avoid blocking the line of sight and affecting the observation
• Quick menus and full-featured menus
• Image clarity adjustments

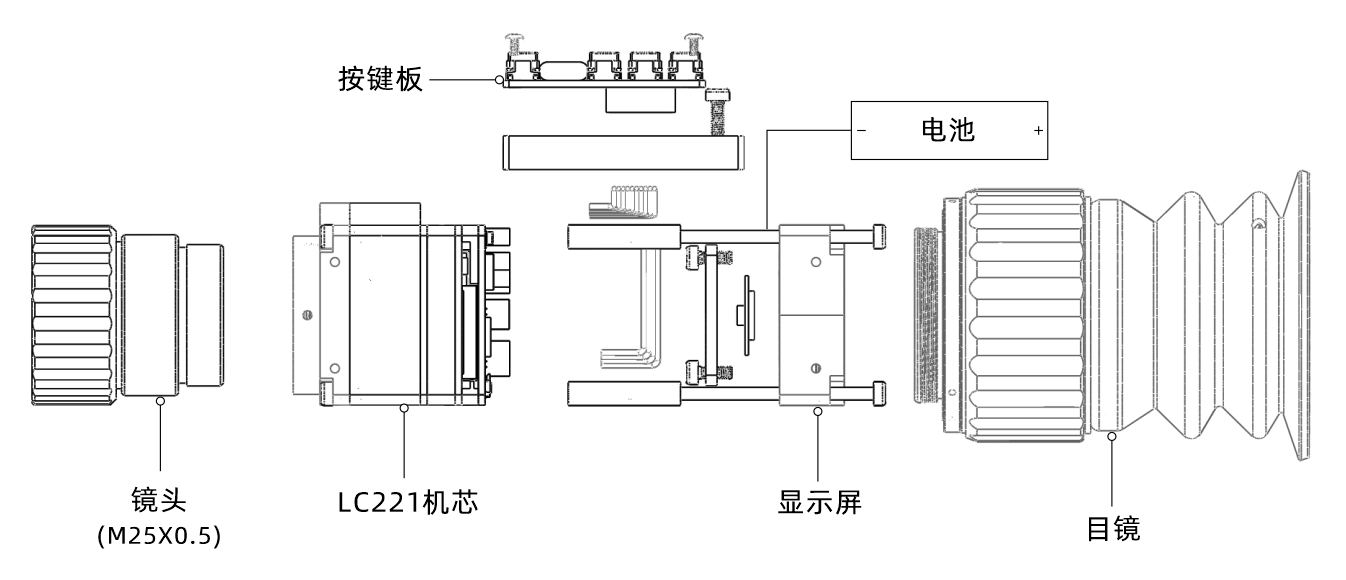

3. Product assembly drawings and component introduction
Part Description:
| Lens | M25x0.5 |
| LCC21 calibre | It includes an image processing board, a detector processing board, and an interface expansion board |
| Button board | Includes buttons and a TEP-Gram interface |
| Display screen | OLED screen |
| Battery | 1S lithium battery |
| Eyepiece | Includes eyepiece vision (adjustable to suit users with different visions), eye patch |

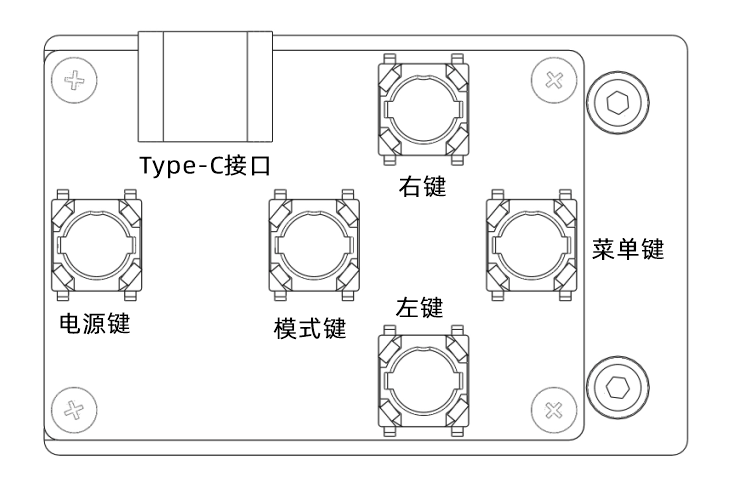

Function description of the key board:
| Power button | Power on/off, screen off/on |
| Mode key | Take photos/videos |
| Left | Zoom out/up arrow keys |
| Right-click | Increase the magnification/down arrow key |
| Menu key | Image mode/Go to the main menu |
| Type-C interface | External power supply and battery charging/connection to the computer |

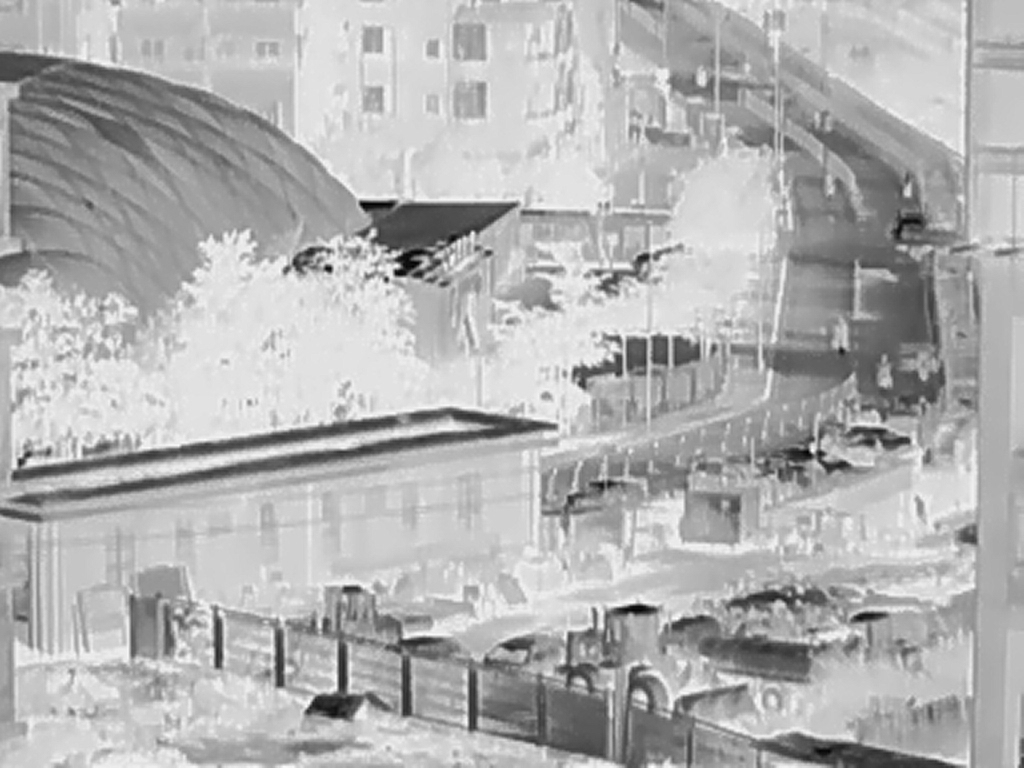

4.The product imaging mode
False color mode Red Hot Mode Black heat mode White hot mode
5.The product operation interface
六、产品物料清单
• Infrared lenses
• Infrared movement(384x288/640x512)
• Core control board
• Display screen
• Enclosure
• Battery

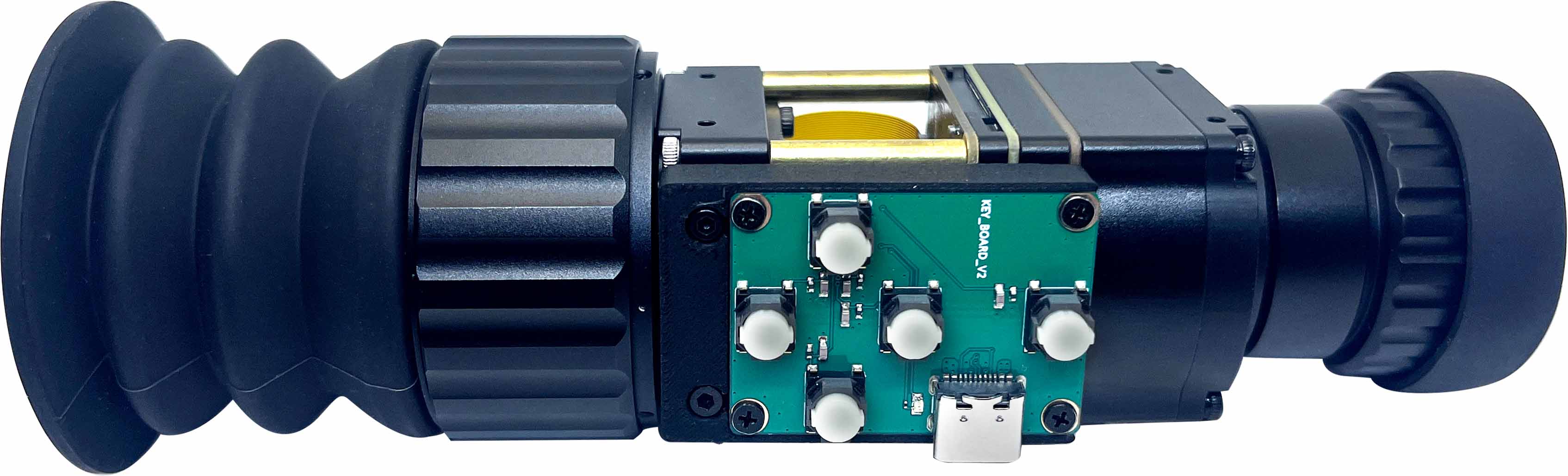

7. Physical drawing of the product
Welcome to customize the development!
